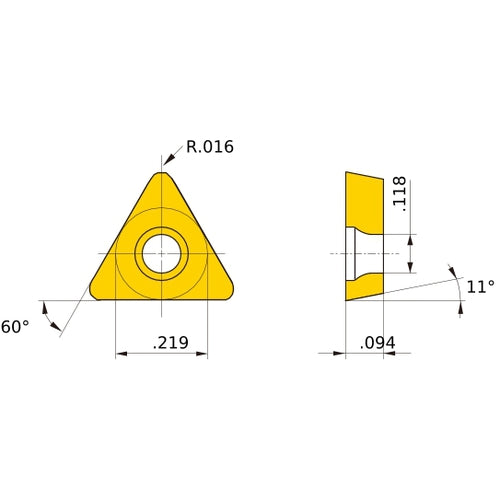

TPGX 1.81.51 R NX2525, 0.4 mm Corner Radius, 2.38 mm Thick, 5.56 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02280209
Brand: Mitsubishi Materials USA
Model #: 280209
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Tool Type | Turning Insert |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 3 mm |
| Insert Style | TPGX |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Size | 1.81.51 |
| Chip Breaker Type | R |
| Insert Thickness (S) | 2.38 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5.56 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | Triangle |
| Cutting Edge Material | Cermet |
| Series/List # | NX2525 |
| Grade | NX2525 |
| Cutting Edge Effective Length (LE) | 5 mm |
