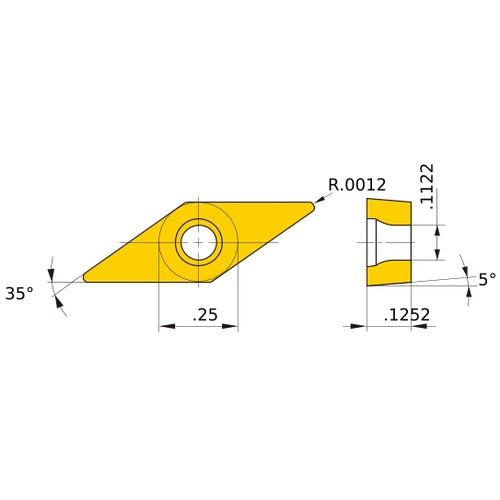

VBET 22 L-SR NX2525, 0.03 Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Item #: MB02272410
Brand: Mitsubishi Materials USA
Model #: 272410
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | NX2525 |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 2.85 mm |
| Insert Style | VBET |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.03 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 22 |
| Chip Breaker Type | L-SR |
| Insert Thickness (S) | 3.18 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees |
| Series/List # | NX2525 |
| Cutting Edge Material | Cermet |
| Cutting Edge Effective Length (LE) | 7.3 mm |
