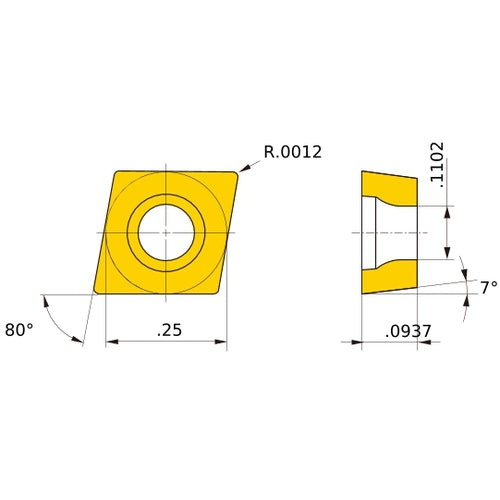

CCGT 21.5 L-SS VP15TF, 0.03 mm Corner Radius, 2.38 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02266491
Brand: Mitsubishi Materials USA
Model #: 266491
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Hard Materials |
| Tool Type | Turning Insert |
| Application | Light Cutting |
| Fixing Hole Diameter (D1) | 2.8 mm |
| Insert Style | CCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.03 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Size | 21.5 |
| Chip Breaker Type | L-SS |
| Insert Thickness (S) | 2.38 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Rhombic |
| Cutting Edge Material | Carbide |
| Series/List # | VP15TF |
| Grade | VP15TF |
| Cutting Edge Effective Length (LE) | 3 mm |
