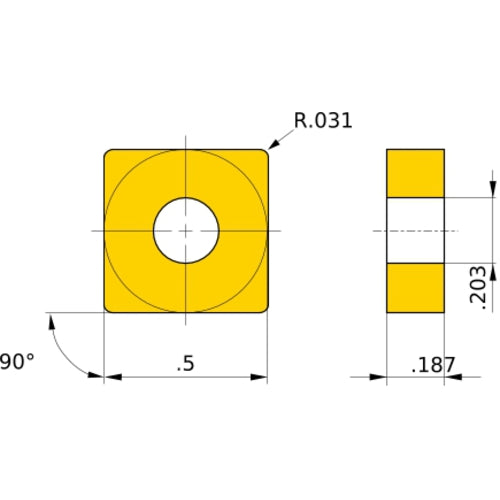

SNMG 432 MS VP10RT, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB02214498
Brand: Mitsubishi Materials USA
Model #: 214498
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Cutting Edge Material | Carbide |
| Application | Medium Cutting |
| Grade | VP10RT |
| Insert Style | SNMG |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 0.8 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 432 |
| Chip Breaker Type | MS |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees |
| Series/List # | VP10RT |
