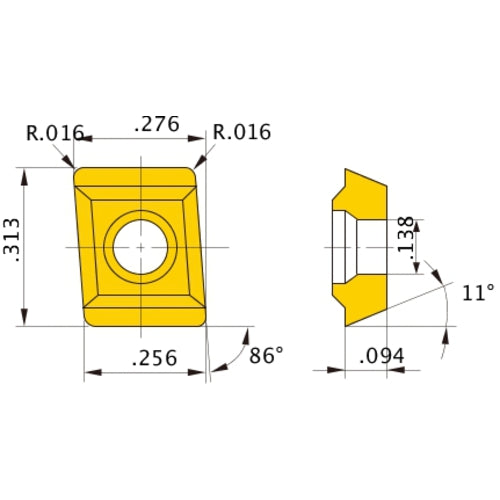

JPMT060204-E UP20M
Item #: MB02185421
Brand: Mitsubishi Materials USA
Model #: 185421
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 7 mm |
| Series/List # | UP20M |
| Corner Radius (RE) | 0.4 mm |
| Hole Diameter | 3.5 mm |
| Insert Width (W1) | 7.94 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 2.38 mm |
| Cutting Edge Effective Length (LE) | 6.5 mm |
| Insert Included Angle (EPSR) | 86 Degrees |
| Measurement Type | Metric |
| Grade | UP20M |
