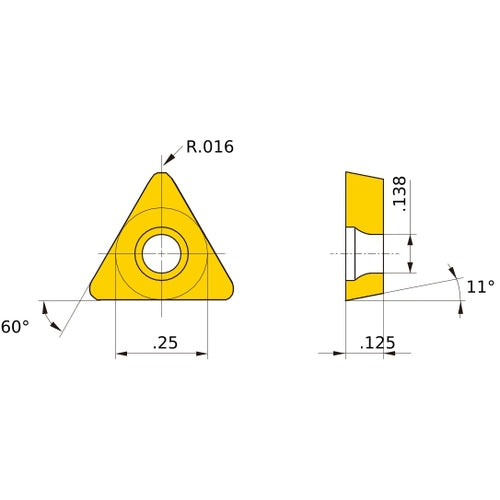

TPGX 221 flat_top NX2525, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Item #: MB02179987
Brand: Mitsubishi Materials USA
Model #: 179987
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | NX2525 |
| Insert Style | TPGX |
| Fixing Hole Diameter (D1) | 3.5 mm |
| Corner Radius (RE) | 0.4 mm |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 221 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | Triangle |
| Cutting Edge Material | Cermet |
| Series/List # | NX2525 |
