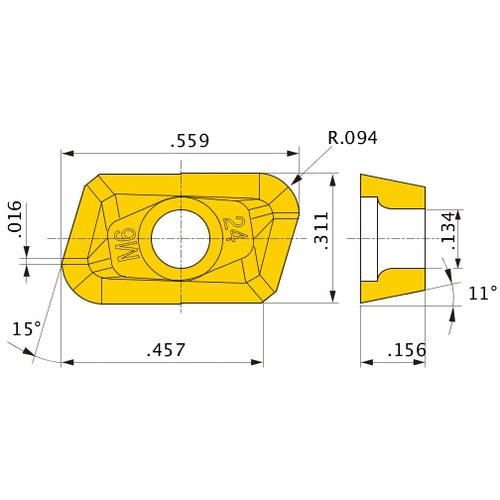

XPMT13T3PDER-M6 F7030 INSERT
Item #: MB02173201
Brand: Mitsubishi Materials USA
Model #: 173201
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 14.2 mm |
| Series/List # | F7030 |
| Corner Radius (RE) | 2.4 mm |
| Hole Diameter | 3.4 mm |
| Insert Width (W1) | 7.9 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.97 mm |
| Tool Type | rotating_inserts |
| Wiper Edge Length (BS) | 0.4 mm |
| Cutting Edge Effective Length (LE) | 11.6 mm |
| Grade | F7030 |
| Measurement Type | Metric |
| Insert Style | XPMT |
