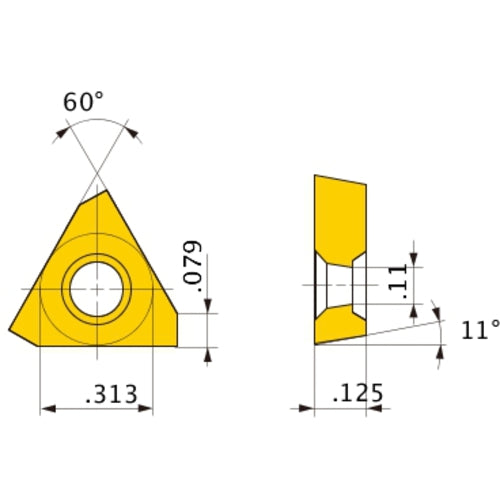

TPEW1303ZPER2 AP10H INSERT
Item #: MB02161904
Brand: Mitsubishi Materials USA
Model #: 161904
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 7.94 mm |
| Series/List # | AP10H |
| Insert Thickness (S) | 3.18 mm |
| Hole Diameter | 2.8 mm |
| Wiper Edge Length (BS) | 2 mm |
| Cutting Edge Material | Carbide |
| Insert Included Angle (EPSR) | 60 Degrees |
| Tool Type | rotating_inserts |
| Grade | AP10H |
| Measurement Type | Metric |
| Insert Style | TPEW |
