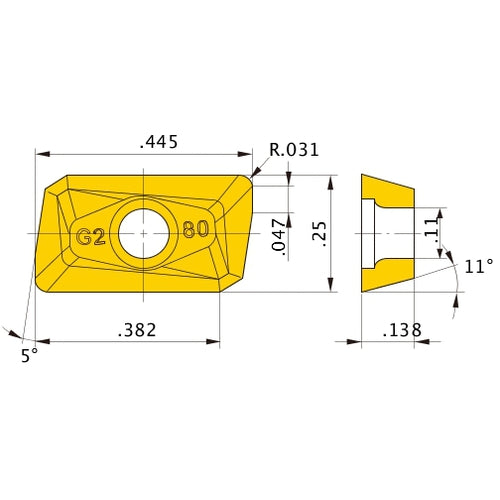

APGT1135PDFR-G2 HTI10 INSERT
Item #: MB02153120
Brand: Mitsubishi Materials USA
Model #: 153120
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 11.3 mm |
| Series/List # | HTi10 |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter | 2.8 mm |
| Insert Width (W1) | 6.35 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.5 mm |
| Tool Type | rotating_inserts |
| Wiper Edge Length (BS) | 1.2 mm |
| Cutting Edge Effective Length (LE) | 9.7 mm |
| Grade | HTi10 |
| Measurement Type | Metric |
| Insert Style | APGT |
