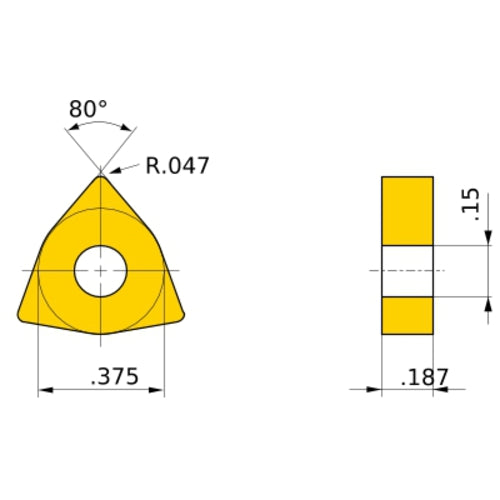

WNMG 333 MA US735, 3/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02125448
Brand: Mitsubishi Materials USA
Model #: 125448
| Product Specifications | |
|---|---|
| Applicable Material | Stainless Steel |
| Cutting Edge Material | Carbide |
| Application | Medium Cutting |
| Grade | US735 |
| Insert Style | WNMG |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 333 |
| Chip Breaker Type | MA |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | Trigon |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | US735 |
