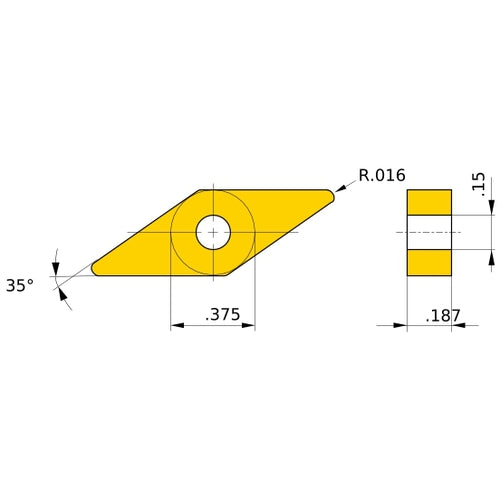

VNGG 331 L UTi20T, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02108949
Brand: Mitsubishi Materials USA
Model #: 108949
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | UTi20T |
| Application | Medium Cutting |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | VNGG |
| Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.4 mm |
| Chip Breaker Type | L |
| Insert Size | 331 |
| Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm |
| Shape | 35° Rhombic |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | UTi20T |
| Insert Included Angle (EPSR) | 35 Degrees |
| Cutting Edge Effective Length (LE) | 15.6 mm |
| Cutting Edge Material | Carbide |
