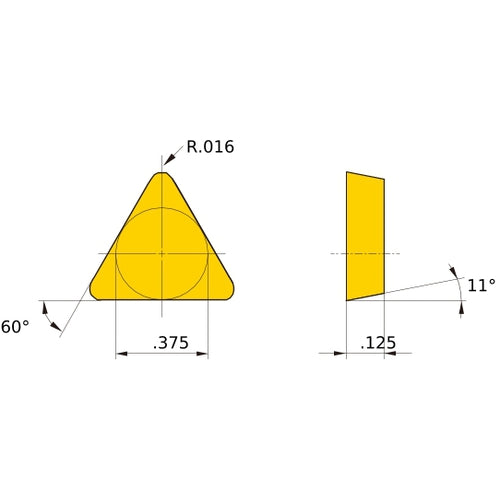

TPG 321 flat_top UTi20T, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB02108379
Brand: Mitsubishi Materials USA
Model #: 108379
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Grade | UTi20T |
| Insert Style | TPG |
| Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 321 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees |
| Series/List # | UTi20T |
| Cutting Edge Material | Carbide |
