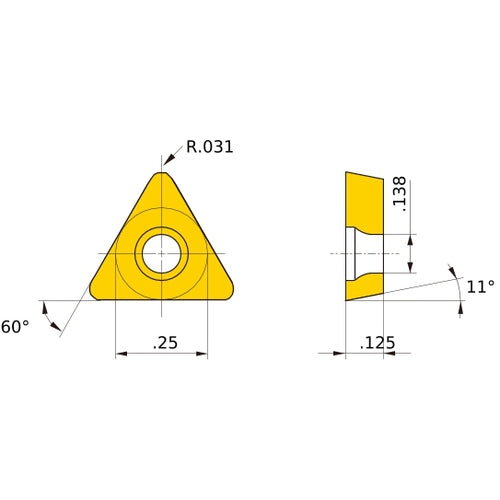

TPGX 222 flat_top UTi20T, 0.8 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Item #: MB02108206
Brand: Mitsubishi Materials USA
Model #: 108206
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Tool Type | Turning Insert |
| Insert Style | TPGX |
| Fixing Hole Diameter (D1) | 3.5 mm |
| Corner Radius (RE) | 0.8 mm |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 222 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.18 mm |
| Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Shape | Triangle |
| Grade | UTi20T |
| Series/List # | UTi20T |
