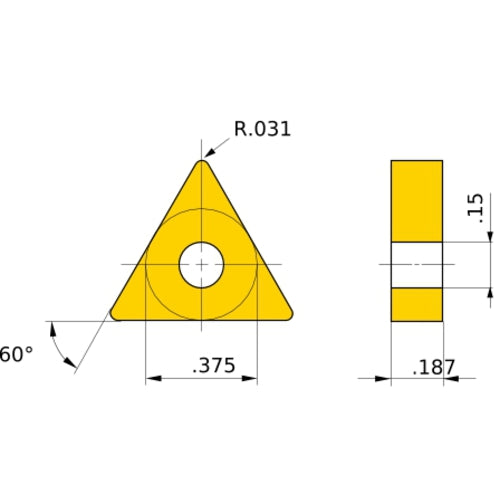

TNGG 332 L- MS6015, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210593578
Brand: Mitsubishi Materials USA
Model #: 10593578
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Grade | MS6015 |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Insert Style | TNGG |
| Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.8 mm |
| Chip Breaker Type | L-FS |
| Insert Size | 332 |
| Measurement Type | Metric |
| Insert Thickness (S) | 4.76 mm |
| Shape | Triangle |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Series/List # | MS6015 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Cutting Edge Effective Length (LE) | 3.1 mm |
| Cutting Edge Material | Carbide |
