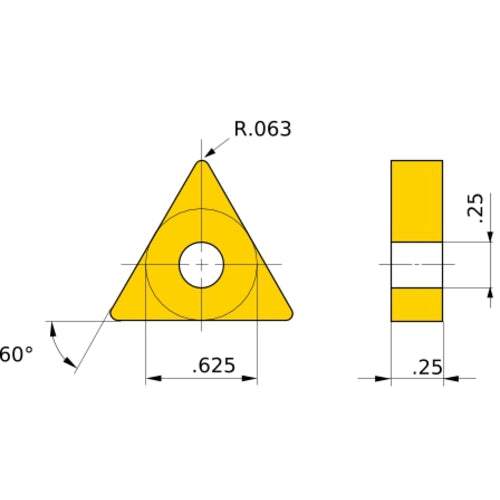

TNMG 544 MA MP9015, 1/16″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210587355
Brand: Mitsubishi Materials USA
Model #: 10587355
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Cutting Edge Material | Carbide |
| Application | Medium Cutting |
| Grade | MP9015 |
| Insert Style | TNMG |
| Fixing Hole Diameter (D1) | 6.35 mm |
| Corner Radius (RE) | 1.6 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 544 |
| Chip Breaker Type | MA |
| Insert Thickness (S) | 6.35 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 15.875 mm |
| Shape | Triangle |
| Insert Included Angle (EPSR) | 60 Degrees |
| Series/List # | MP9015 |
