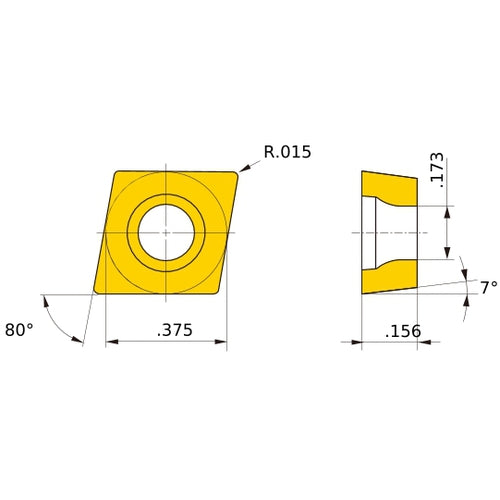

CCGT 32.51 -P MT9005, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210575826
Brand: Mitsubishi Materials USA
Model #: 10575826
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Grade | MT9005 |
| Application | Finish Cutting |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | CCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.38 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 32.51 |
| Chip Breaker Type | FS-P |
| Insert Thickness (S) | 3.97 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | MT9005 |
| Cutting Edge Material | Carbide |
