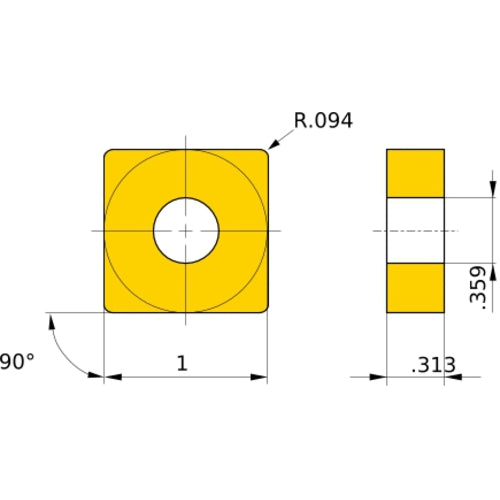

SNMM 856 HM MC6035, 3/32″ Corner Radius, 5/16″ Thick, 25.4 Inscribed Circle, Turning Indexable Insert
Item #: MB0210569252
Brand: Mitsubishi Materials USA
Model #: 10569252
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Cutting Edge Material | Carbide |
| Application | Heavy Cutting |
| Grade | MC6035 |
| Insert Style | SNMM |
| Fixing Hole Diameter (D1) | 9.12 mm |
| Corner Radius (RE) | 2.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 856 |
| Chip Breaker Type | HM |
| Insert Thickness (S) | 7.94 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 25.4 mm |
| Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees |
| Series/List # | MC6035 |
