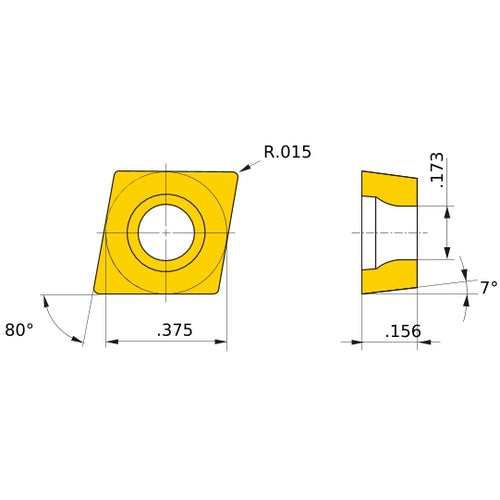

CCGT 32.51 R-SS MS6015, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210540916
Brand: Mitsubishi Materials USA
Model #: 10540916
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel |
| Grade | MS6015 |
| Application | Light Cutting |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Insert Style | CCGT |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.38 mm |
| Cutting Direction (HAND) | Right Hand |
| Insert Size | 32.51 |
| Chip Breaker Type | R-SS |
| Insert Thickness (S) | 3.97 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | MS6015 |
| Cutting Edge Material | Carbide |
| Cutting Edge Effective Length (LE) | 5 mm |
