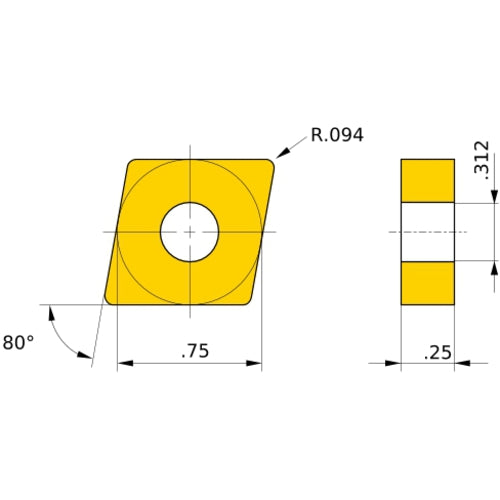

CNMA 646 flat_top MC5015, 1/4″ Corner Radius, 1/4″ Thick, 3/4″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210525722
Brand: Mitsubishi Materials USA
Model #: 10525722
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Grade | MC5015 |
| Insert Style | CNMA |
| Fixing Hole Diameter (D1) | 7.93 mm |
| Corner Radius (RE) | 2.4 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 646 |
| Chip Breaker Type | flat_top |
| Insert Thickness (S) | 6.35 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 19.05 mm |
| Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | MC5015 |
| Cutting Edge Material | Carbide |
