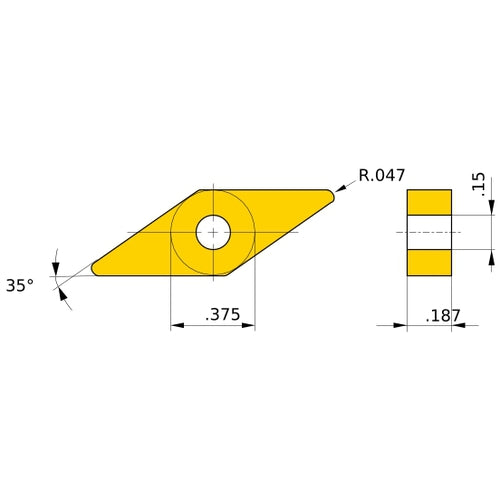

VNMG 333 GK MC5005, 3/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210525678
Brand: Mitsubishi Materials USA
Model #: 10525678
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Cutting Edge Material | Carbide |
| Application | Rough Cutting |
| Grade | MC5005 |
| Insert Style | VNMG |
| Fixing Hole Diameter (D1) | 3.81 mm |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 333 |
| Chip Breaker Type | GK |
| Insert Thickness (S) | 4.76 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees |
| Series/List # | MC5005 |
