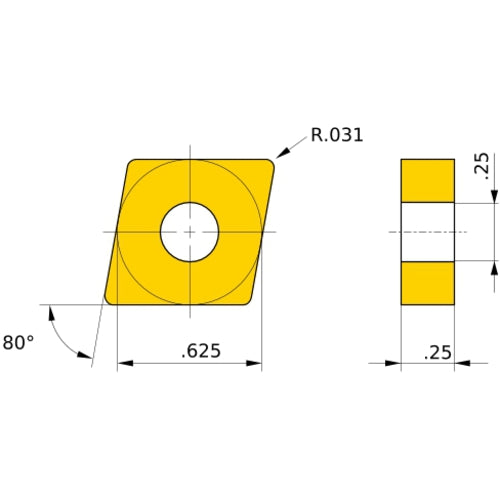

CNMG 542 RK MC5005, 1/32″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Item #: MB0210525661
Brand: Mitsubishi Materials USA
Model #: 10525661
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Cutting Edge Material | Carbide |
| Application | Rough Cutting |
| Grade | MC5005 |
| Insert Style | CNMG |
| Fixing Hole Diameter (D1) | 6.35 mm |
| Corner Radius (RE) | 0.8 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 542 |
| Chip Breaker Type | RK |
| Insert Thickness (S) | 6.35 mm |
| Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 15.875 mm |
| Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees |
| Series/List # | MC5005 |
