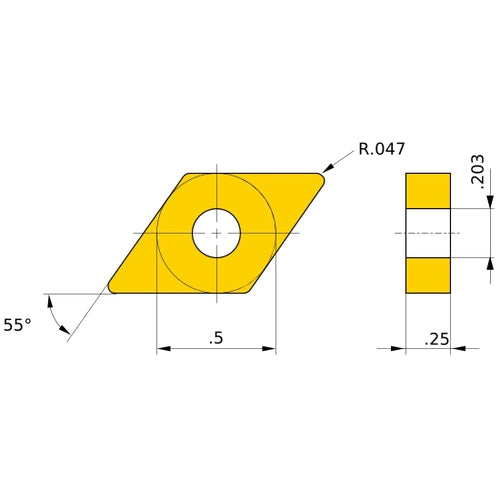

DNMX 443 MW MC6015, 1.2 mm Corner Radius, 6.35 mm Thick, 12.7 mm Inscribed Circle, Turning Indexable Insert
Item #: MB0210519622
Brand: Mitsubishi Materials USA
Model #: 10519622
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Grade | MC6015 |
| Application | Medium Cutting |
| Tool Type | Turning Insert |
| Insert Style | DNMX |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.2 mm |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 443 |
| Chip Breaker Type | MW |
| Insert Thickness (S) | 6.35 mm |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Measurement Type | Metric |
| Insert Included Angle (EPSR) | 55 Degrees |
| Shape | 55° Rhombic |
| Cutting Edge Material | Carbide |
| Series/List # | MC6015 |
