AEMW150308ER UTI20T INSERT
Item #: MB02100058
Brand: Mitsubishi Materials USA
Model #: 100058

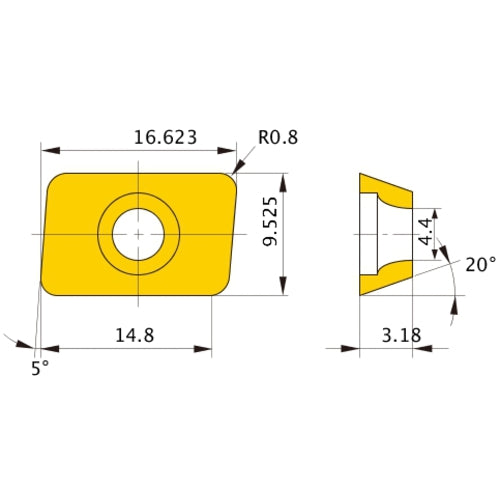

| Product Specifications | |
|---|---|
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 16.623 mm |
| Series/List # | UTi20T |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter | 4.4 mm |
| Insert Width (W1) | 9.525 mm |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.18 mm |
| Tool Type | rotating_inserts |
| Grade | UTi20T |
| Cutting Edge Effective Length (LE) | 14.8 mm |
| Insert Style | AEMW |
| Measurement Type | Metric |
