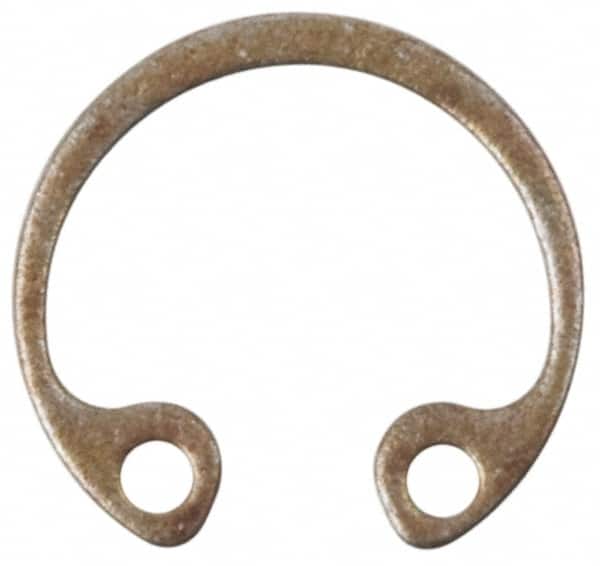

Rotor Clip - 0.901" Bore Diam, Spring Steel Internal Snap Retaining Ring
Item #: 99615882
Brand: Rotor Clip
Model #: HO-90ST PD-B
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Spring Steel |
| System of Measurement | Inch |
| Bore Diameter (Decimal Inch) | 0.9010 |
| Groove Diameter (Decimal Inch) | 0.9590 |
| Groove Width (Decimal Inch) | 0.0460 |
| Free Outside Diameter (Decimal Inch) | 0.9010 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Material Grade | 1060-1090 |
| Finish/Coating | Phosphate |
| Groove Depth (Decimal Inch) | 0.0290 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Free Diameter (mm) | 22.89 |
