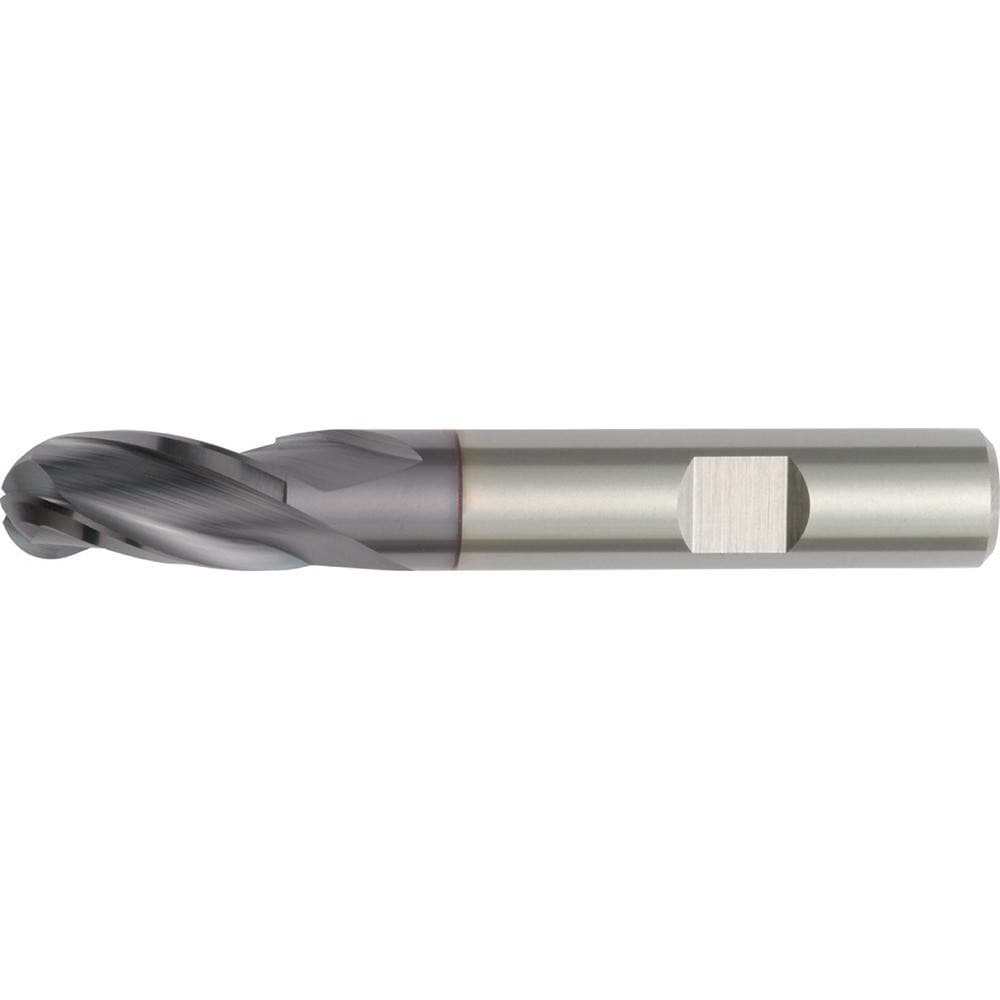

Brand: Widia / Part #: 1863330
Item #: 33977869
Brand: Widia
Model #: 1863330
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Length of Cut (mm) | 19.00 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Chipbreaker | No |
| Number Of Flutes | 3 |
| End Type | Single |
| Extended Reach | No |
| Undercutting | No |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Nose Radius (Decimal Inch) | 5.0000 |
| Reach Length (mm) | 19.00 |
| Overall Length (mm) | 72.00 |
| Maximum Helix Angle | 35.00 |
| Minimum Helix Angle | 35.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | TiAlN-LW |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | DC19 |
| Flute Type | Medium |
| Coolant Through | No |
