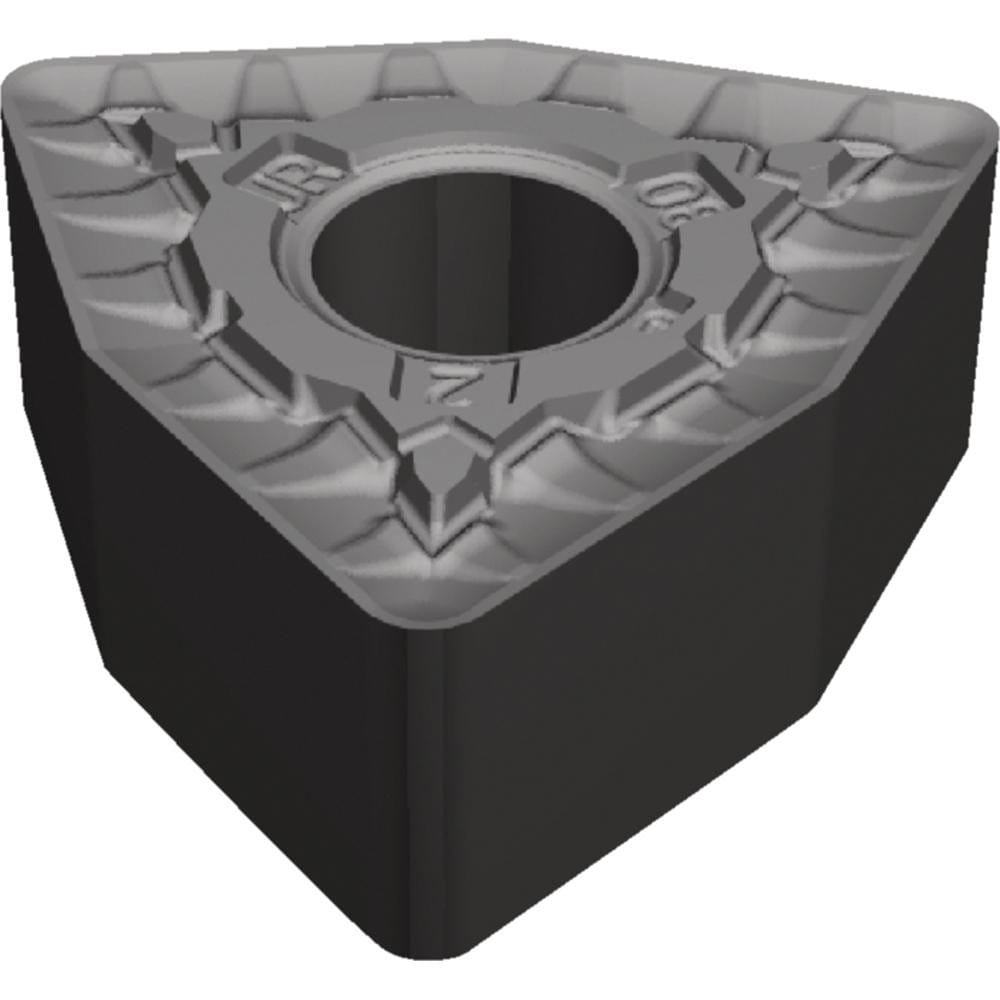

Brand: Widia / Part #: 4170533

Brand: Widia / Part #: 4170533


Item #: 16522930
Brand: Widia
Model #: 4170533

Product Specifications

Insert Style WNMG
Insert Shape Code W
Insert Size Code 432
Insert Shape Trigon
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP25CT
Corner Radius (Decimal Inch) 0.0315
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.1710
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series WNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.3420
Number Of Cutting Edges 6
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code WNMG432UR
Iso Code WNMG080408UR
Manufacturers Catalog Number WNMG432UR
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker UR
Style WNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
