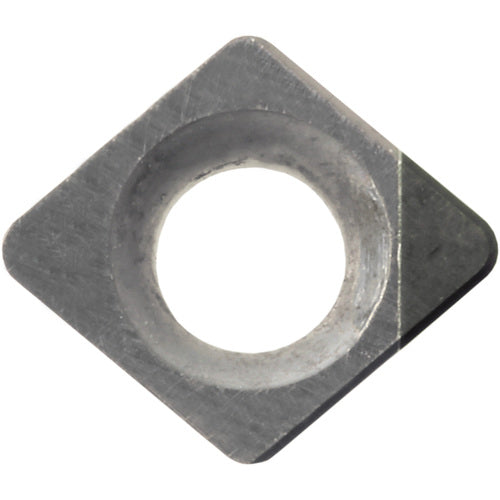

CCMW 14111 KBN510, 1/64″ Corner Radius, 0.071″ Thick, 0.169″ Inscribed Circle, 80 Degree Diamond, Turning Indexable Insert
Item #: KY99TBV01286
Brand: Kyocera Precision Tools
Model #: TBV01286
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | CCMW |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 1 |
| Insert Size | 14111 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.071″ |
| Quantity | 1 |
| Inscribed Circle Diameter (IC) | 0.169″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Diamond |
| Cutting Edge Material | CBN |
| Series/List # | ISOI |
| Grade | KBN510 |
| Model No | 8820602 |
