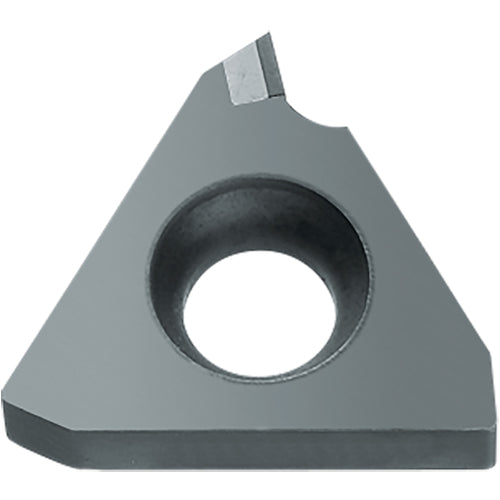

TGF 32R200010 KPD001 Grade PCD, Indexable Grooving Insert
Item #: KY99TBR23129
Brand: Kyocera Precision Tools
Model #: TBR23129
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 2 mm |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.1 mm |
| Number of Cutting Edges | 1 |
| Cutting Depth Maximum (CDX) | 2.5 mm |
| Insert Style | TGF |
| Insert Thickness (S) | 3.18 mm |
| Number of Teeth | 1 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Mounting Style | Clamp |
| Fixing Hole Diameter (D1) | 4.5 mm |
| Series/List # | KTG |
| Grade | KPD001 |
| Coating Process | Uncoated |
| Cutting Edge Material | PCD |
| Measurement Type | Metric |
| Application | External Shallow Grooving |
| Cutting Edge Length (L) | 1.9 mm |
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
