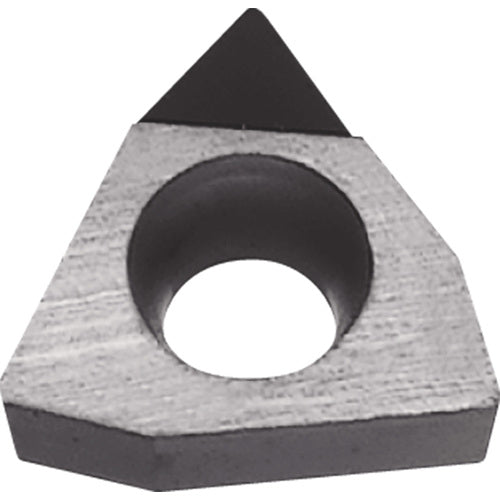

WBMT 12105 KPD001, 0.008″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, 80 Degree Trigon, Turning Indexable Insert
Item #: KY99TBR07136
Brand: Kyocera Precision Tools
Model #: TBR07136
| Product Specifications | |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Internal Facing |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | WBMT |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 1 |
| Insert Size | 12105 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/16″ |
| Quantity | 1 |
| Inscribed Circle Diameter (IC) | 5/32″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Trigon |
| Cutting Edge Material | PCD |
| Series/List # | ISOI |
| Grade | KPD001 |
| Model No | 8837001 |
