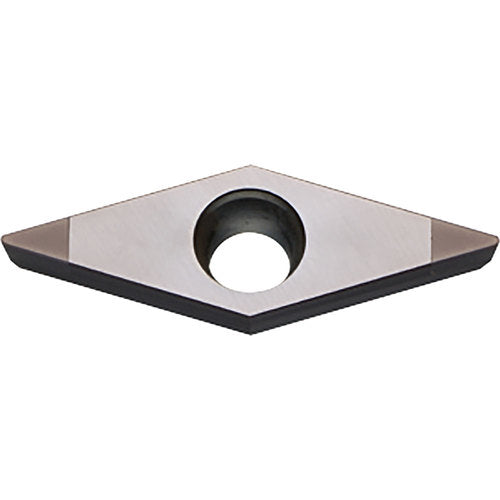

VCGW 151505 KBN05M, 0.008″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, MEGACOAT, 35 Degree Diamond, Turning Indexable Insert
Item #: KY99TBN05731
Brand: Kyocera Precision Tools
Model #: TBN05731
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Tool Type | Turning Insert |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | VCGW |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 2 |
| Insert Size | 151505 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ |
| Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3/16″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 35 Degrees |
| Shape | 35° Diamond |
| Cutting Edge Material | CBN |
| Series/List # | ISOI |
| Coating | MEGACOAT |
| Model No | 8832708 |
| Grade | KBN05M |
