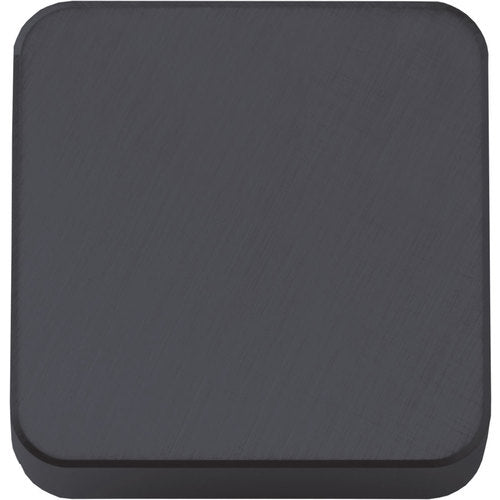

SNG 435 KS6015, 5/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, 90 Degree Square, Turning Indexable Insert
Item #: KY98TTB05242
Brand: Kyocera Precision Tools
Model #: TTB05242
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Clearance Angle Major (AN) | 0 Degrees |
| Insert Style | SNG |
| Number of Cutting Edges | 8 |
| Corner Radius (RE) | 5/64″ |
| Cutting Direction (HAND) | Neutral |
| Insert Size | 435 |
| Quantity | 10 |
| Insert Thickness (S) | 3/16″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Shape | Square |
| Insert Included Angle (EPSR) | 90 Degrees |
| Series/List # | ISOI |
| Cutting Edge Material | Ceramic |
| Model No | 8863029 |
| Grade | KS6015 |
