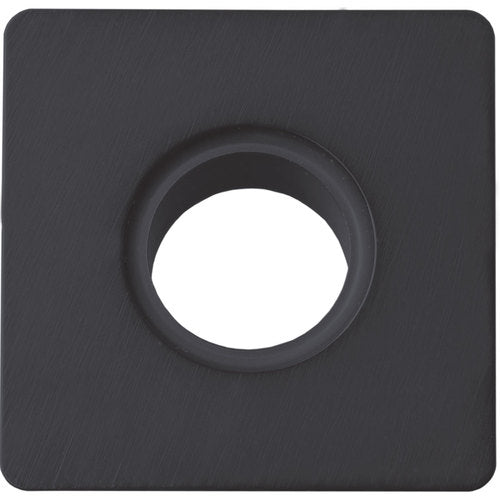

SNGA 433 KS6015, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, 90 Degree Square, Turning Indexable Insert
Item #: KY98TTB05012
Brand: Kyocera Precision Tools
Model #: TTB05012
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |
| Tool Type | Turning Insert |
| Application | Boring | Chamfering | External Turning | Facing |
| Fixing Hole Diameter (D1) | 0.2032″ |
| Insert Style | SNGA |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ |
| Number of Cutting Edges | 8 |
| Insert Size | 433 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees |
| Shape | Square |
| Cutting Edge Material | Ceramic |
| Series/List # | ISOI |
| Grade | KS6015 |
| Model No | 8863024 |
