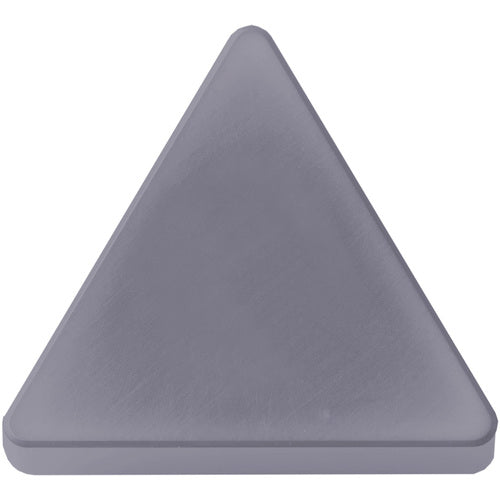

TNG 221 PT600M, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Al2O3/TiC (MEGACOAT), 60 Degree Triangle, Turning Indexable Insert
Item #: KY98TCV06802
Brand: Kyocera Precision Tools
Model #: TCV06802
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Hard Materials |
| Grade | PT600M |
| Application | Copying | External Turning | Facing |
| Tool Type | Turning Insert |
| Insert Style | TNG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 6 |
| Insert Size | 221 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | 60° Triangle |
| Cutting Edge Material | Ceramic |
| Series/List # | ISOI |
| Coating | Al2O3/TiC (MEGACOAT) |
| Model No | 8828036 |
