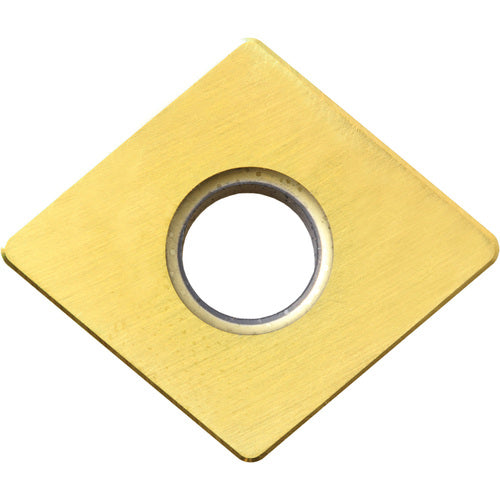

CNGA 543 A66N, 3/64″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, Al2O3/TiC (TiN Coat), 80 Degree Diamond, Turning Indexable Insert
Item #: KY98800360
Brand: Kyocera Precision Tools
Model #: 8800360
| Product Specifications | |
|---|---|
| Applicable Material | Hard Materials |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing |
| Fixing Hole Diameter (D1) | 1/4″ |
| Insert Style | CNGA |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 3/64″ |
| Number of Cutting Edges | 4 |
| Insert Size | 543 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees |
| Shape | 80° Diamond |
| Cutting Edge Material | Ceramic |
| Series/List # | ISOI |
| Coating | Al2O3/TiC (TiN Coat) |
| Model No | 8800360 |
| Grade | A66N |
