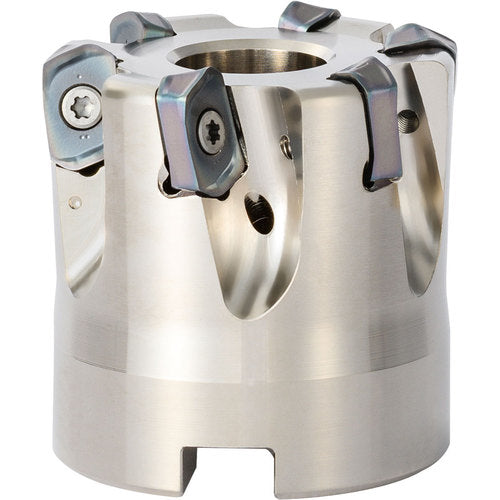

MFH 2500R049T, MFH-Max, 2.5000'' Cutting Diameter Maximum, High-Feed Face Mill
Item #: KY96THN08674
Brand: Kyocera Precision Tools
Model #: THN08674
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2-1/2″ |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees |
| Cutting Diameter (DC) | 2-1/2″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2-1/2″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 9 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.0984″ |
| Application | Helical Milling | High Feed | Ramping | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 1.9689″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2-1/4″ |
| Series/List # | MFHM |
| Master Insert Identification (MIID) | LOMU040410ERGM |
