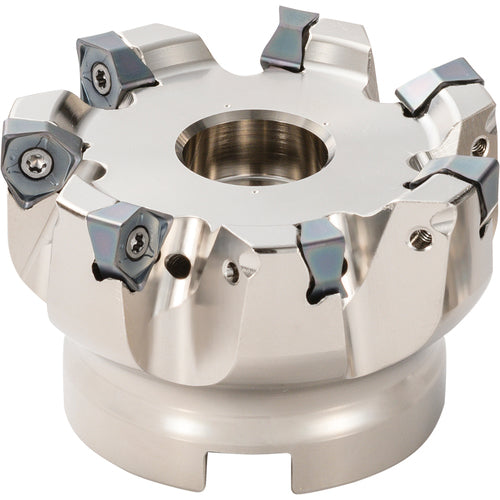

MFWN90080R 05 9T Inch Bore Diameter, 90 Degree Face Mill
Item #: KY96THN08518
Brand: Kyocera Precision Tools
Model #: THN08518
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3.1496″ |
| Master Insert Identification (MIID) | WNMU080604EN-GM | WNMU080608EN-GM | WNMU080608EN-SM | WNMU080608EN-GH | WNEU080608EN-GL | WNGT080608FN-AM |
| Cutting Diameter (DC) | 3.1496″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 3.1496″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 9 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.1969″ |
| Application | Facing | Plunging | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 1.9685″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2.7559″ |
| Series/List # | MFWN |
