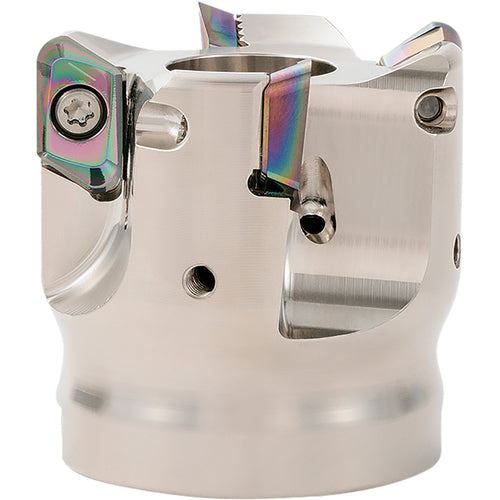

MEAS 050R134TM Metric Bore Diameter, 90 Degree Face Mill
Item #: KY96THN08435
Brand: Kyocera Precision Tools
Model #: THN08435
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 50 mm |
| Ramping Angle Maximum (RMPX) | 6 Degrees |
| Cutting Diameter (DC) | 50 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 50 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 12 mm |
| Application | Contouring | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 50 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 45 mm |
| Series/List # | MEAS |
| Master Insert Identification (MIID) | KCGTFR-AL |
