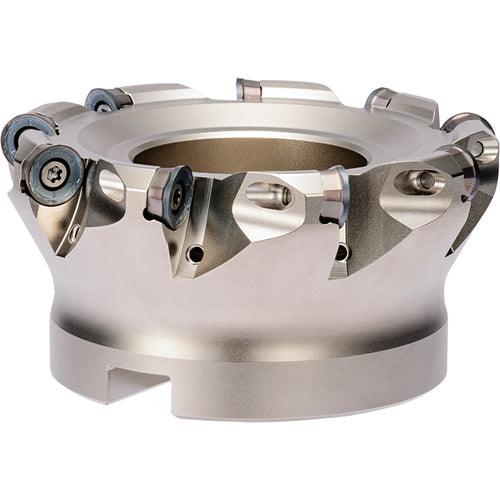

MRX 4000R167T RAD-6 Series, Radius Face Mill
Item #: KY96THN07475
Brand: Kyocera Precision Tools
Model #: THN07475
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 4″ |
| Master Insert Identification (MIID) | RPMT1605M0ER-GM | RPGT1605M0ER-GM | RPGT1605M0ER-SM | RPMT1605M0EN-GH | RPMW1605M0TN |
| Cutting Diameter (DC) | 4″ |
| Ramping Angle Maximum (RMPX) | 2 Degrees |
| Cutting Diameter Maximum (DCX) | 4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Overall Length (OAL) | 1.9685″ |
| Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.5402″ |
| Series/List # | MRX |
