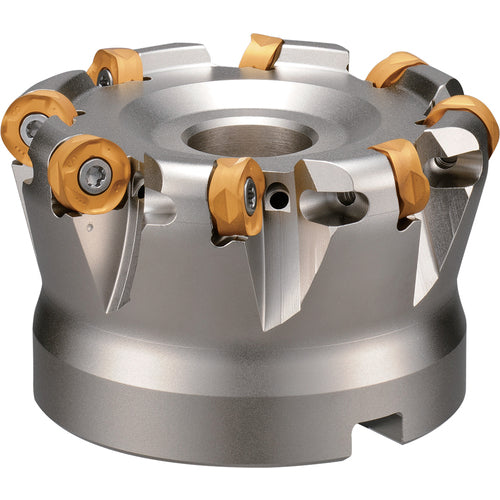

MRW 3000R167T RAD-8 Series, Radius Face Mill
Item #: KY96THN06361
Brand: Kyocera Precision Tools
Model #: THN06361
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3″ |
| Master Insert Identification (MIID) | ROMU1605M0ER-GM | ROMU1605M0ER-SM | ROMU1605M0ER-GH |
| Cutting Diameter (DC) | 3″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 3″ |
| Body Material | Steel |
| Cutting Item Count (CICT) | 7 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.315″ |
| Application | Contouring | Facing | Plunging | Profiling | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 1.9685″ |
| Series/List # | MRW |
| Hub Diameter (DHUB) | 2-1/4″ |
