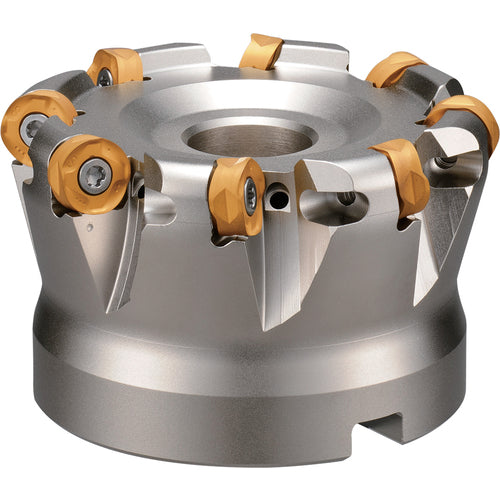

MRW 100R168T RAD-8 Series, Radius Face Mill
Item #: KY96THN06343
Brand: Kyocera Precision Tools
Model #: THN06343
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 100 mm |
| Master Insert Identification (MIID) | ROMU1605M0ER-GM | ROMU1605M0ER-SM | ROMU1605M0ER-GH |
| Cutting Diameter (DC) | 100 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 100 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 8 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm |
| Application | Contouring | Facing | Plunging | Profiling | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 50 mm |
| Series/List # | MRW |
| Hub Diameter (DHUB) | 78 mm |
