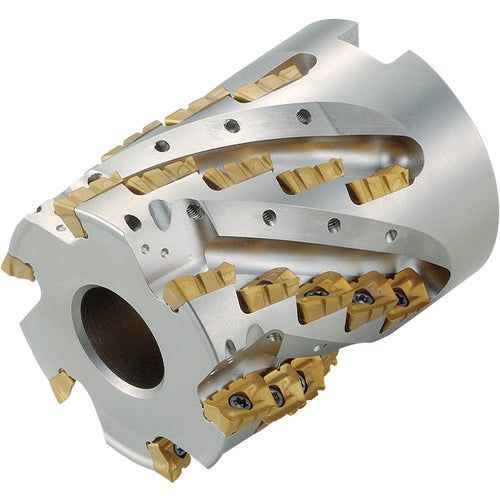

MECH 2000R1744T (MEC Series), Helical Shell Mill
Item #: KY96THN03883
Brand: Kyocera Precision Tools
Model #: THN03883
| Product Specifications | |
|---|---|
| Application | Facing | Shouldering |
| Master Insert Identification (MIID) | BDMT170408ER-N3 | BDMT170408ER-N4 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coolant Supply Property (CSP) | External Coolant |
| Cutting Item Count (CICT) | 16 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.3228″ |
| Cutting Diameter Maximum (DCX) | 2″ |
| Cutting Diameter (DC) | 2″ |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Body Material | Steel |
| Flute Count (NOF) | 4 |
| Tool Type | Helical Shell Mill |
| Overall Length (OAL) | 3.0709″ |
| Series/List # | MEC |
| Number of Teeth | 16 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
