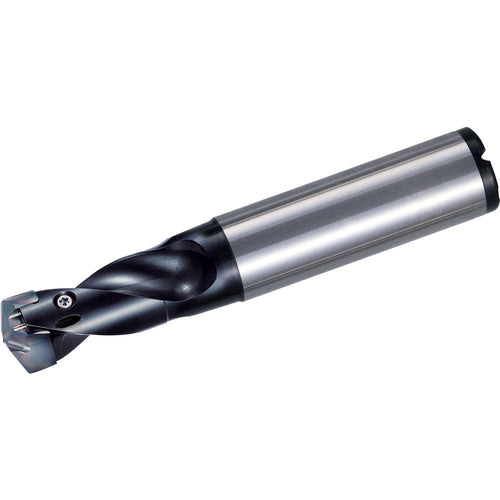

SS12DRA110M15, DRA Magic Drill 11.00-11.49mm Cutting Diameter, 1.5xD, Replaceable Tip Drill
Item #: KY96THD11496
Brand: Kyocera Precision Tools
Model #: THD11496
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 11 mm - 11.49 mm |
| Overall Length (OAL) | 79.7 mm |
| Usable Length (LU) | 17.3 mm |
| Shank Length (LS) | 45 mm |
| Length Group | 1.5D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Style | SS DRA |
| Insert Seat Size Code (SSC) | 110 |
| Master Insert Identification (MIID) | DA1100M- ~ DA1140M- |
| Cutting Diameter Minimum (DCN) | 11 mm |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 11.49 mm |
| Body Material | Steel |
