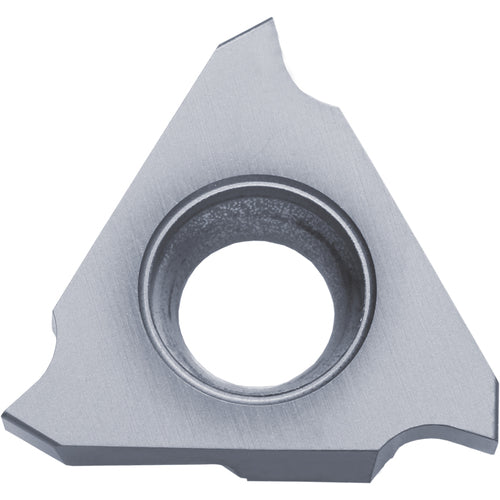

GBA 32R095005 TN90 INSERT
Item #: KY928810673
Brand: Kyocera Precision Tools
Model #: TSO09009
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.95 mm |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.05 mm |
| Insert Style | GBA |
| Cutting Depth Maximum (CDX) | 2 mm |
| Insert Seat Size Code (SSC) | 32 |
| Insert Thickness (S) | 3.18 mm |
| Number of Teeth | 3 |
| Inscribed Circle Diameter (IC) | 9.525 mm |
| Mounting Style | Clamp |
| Fixing Hole Diameter (D1) | 4.4 mm |
| Series/List # | GBA |
| Grade | TN90 |
| Coating Process | Uncoated |
| Cutting Edge Material | Cermet |
| Measurement Type | Metric |
| Applicable Material | Steel | Stainless Steel |
