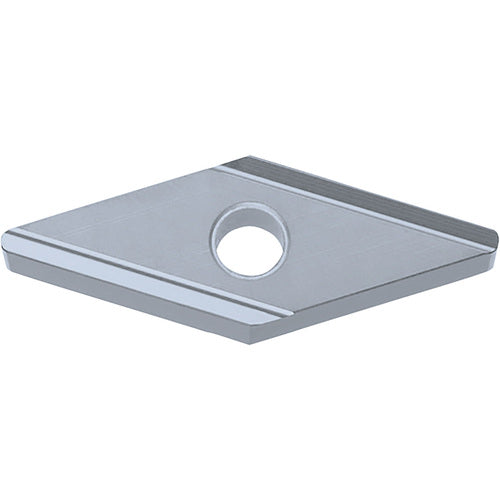

VNGG 3305 TN620, 0.008″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN, 35 Degree Diamond, Turning Indexable Insert
Item #: KY91TSR07751
Brand: Kyocera Precision Tools
Model #: TSR07751
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Copying | External Turning | Facing | Undercutting |
| Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | VNGG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 4 |
| Insert Size | 3305 |
| Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3/16″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 35 Degrees |
| Shape | 35° Diamond |
| Cutting Edge Material | Cermet |
| Series/List # | ISOI |
| Coating | TiCN |
| Model No | 8843393 |
| Grade | TN620 |
