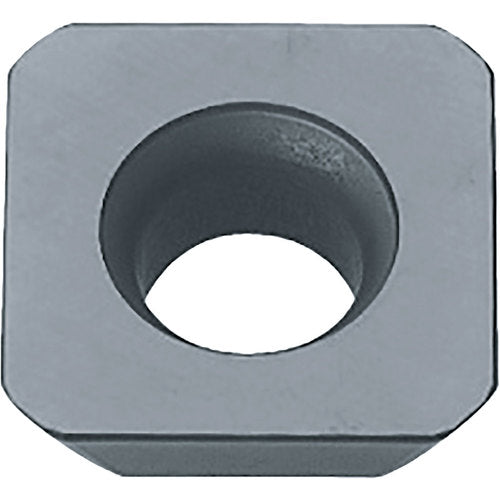

SEKW 43AFTN TN100M Grade Uncoated Cermet, Indexable Milling Insert
Item #: KY91TSP60628
Brand: Kyocera Precision Tools
Model #: TSP60628
| Product Specifications | |
|---|---|
| Applicable Material | Steel | Super-Alloys / Titanium |
| Insert Size | 43 |
| Application | Chamfering | Facing | Shouldering |
| Clearance Angle Major (AN) | 20 Degrees |
| Insert Width (W1) | 1/2″ |
| Corner Chamfer Width (CHW) | 0.0197″ |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | AFTN |
| Wiper Edge Length (BS) | 0.0669″ |
| Series/List # | GPM |
| Insert Included Angle (EPSR) | 90 Degrees |
| Hole Diameter | 0.2165″ |
| Coating | TiCN/NbC |
| Cutting Edge Material | Cermet |
| Grade | TN100M |
| Coating Process | Uncoated |
| Shape | Square |
| Number of Cutting Edges | 4 |
| Insert Style | SEKW |
| Measurement Type | Inch |
