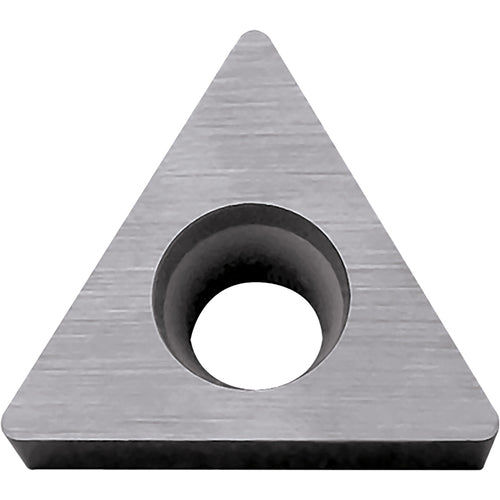

TBGW 12105 TN60, 0.008″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, TiCN/NbC, 60 Degree Triangle, Turning Indexable Insert
Item #: KY91TSJ01540
Brand: Kyocera Precision Tools
Model #: TSJ01540
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Back Boring | Boring | Copying | Internal Facing |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | TBGW |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 3 |
| Insert Size | 12105 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/16″ |
| Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/32″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees |
| Shape | 60° Triangle |
| Cutting Edge Material | Cermet |
| Series/List # | ISOI |
| Coating | TiCN/NbC |
| Model No | 8813972 |
| Grade | TN60 |
