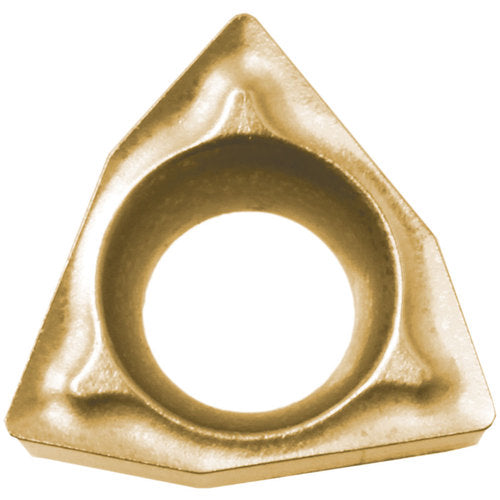

WBMT 151505 DP CCX, 0.008″ Corner Radius, 3/32″ Thick, 3/16″ Inscribed Circle, TiCl2O3/Tin, 80 Degree Trigon, Turning Indexable Insert
Item #: KY91TMJ40123
Brand: Kyocera Precision Tools
Model #: TMJ40123
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | Internal Facing |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | WBMT |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 3 |
| Insert Size | 151505 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3/32″ |
| Chip Breaker Type | DP |
| Inscribed Circle Diameter (IC) | 3/16″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 80° Trigon |
| Coating | TiCl2O3/TiN |
| Series/List # | ISOI |
| Grade | CCX |
| Model No | 8864317 |
