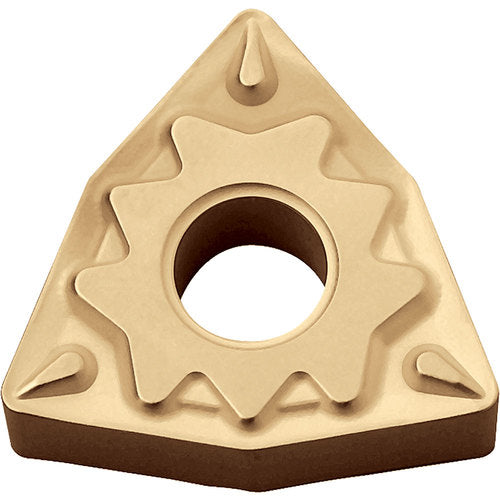

WNMG 3251 HQ PV730, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiAlN/TiN, 80 Degree Trigon, Turning Indexable Insert
Item #: KY91TLP00565
Brand: Kyocera Precision Tools
Model #: TLP00565
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing |
| Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | WNMG |
| Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 6 |
| Insert Size | 3251 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ |
| Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 80° Trigon |
| Coating | TiAlN/TiN |
| Series/List # | ISOI |
| Grade | PV730 |
| Model No | 8866301 |
