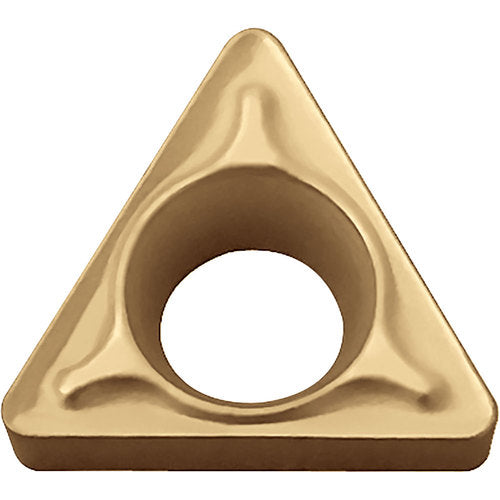

TBMT 1211 DP PV730, 1/64″ Corner Radius, 1/16″ Thick, 5/32″ Inscribed Circle, TiAlN/TiN, 60 Degree Triangle, Turning Indexable Insert
Item #: KY91TLP00278
Brand: Kyocera Precision Tools
Model #: TLP00278
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Back Boring | Boring | Copying | Internal Facing |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | TBMT |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ |
| Number of Cutting Edges | 3 |
| Insert Size | 1211 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/16″ |
| Chip Breaker Type | DP |
| Inscribed Circle Diameter (IC) | 5/32″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 60° Triangle |
| Coating | TiAlN/TiN |
| Series/List # | ISOI |
| Grade | PV730 |
| Model No | 8866038 |
