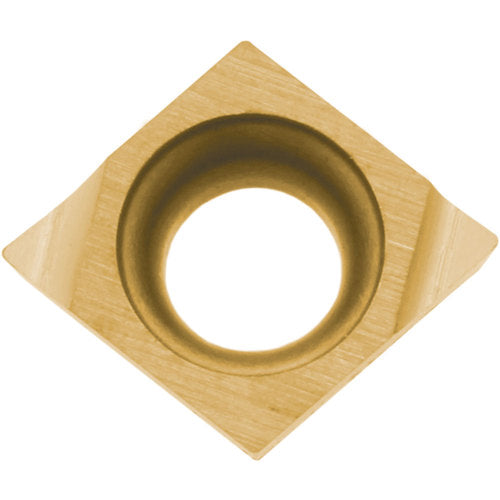

CCET 141105 F PV710, 0.008″ Corner Radius, 0.071″ Thick, 0.169″ Inscribed Circle, TiCN (MEGACOAT NANO), 80 Degree Diamond, Turning Indexable Insert
Item #: KY91TLF01015
Brand: Kyocera Precision Tools
Model #: TLF01015
| Product Specifications | |
|---|---|
| Applicable Material | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | CCET |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 2 |
| Insert Size | 141105 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.071″ |
| Chip Breaker Type | F |
| Inscribed Circle Diameter (IC) | 0.169″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Cermet |
| Shape | 80° Diamond |
| Coating | TiCN (MEGACOAT NANO) |
| Series/List # | ISOI |
| Grade | PV710 |
| Model No | 8847398 |
